MT280
• Entry-Level Batch Production Printer
• Low Cost | High Output | Easy Operation
• Multi-Field Research Top Pick
Build Size：265mm×265mm×400mm（X×Y×Z）
Laser Type：500W×1/×2
Materials：Titanium Alloy, Superalloy, Aluminum Alloy, Cobalt-Chromium Alloy, Stainless Steel, Die Steel, Copper Alloy, Nickel-Titanium Alloy, High-Entropy Alloy, Refractory Metals, etc.
Application Area
Aerospace
Health
Mould
Automobile
Scientific Research Education

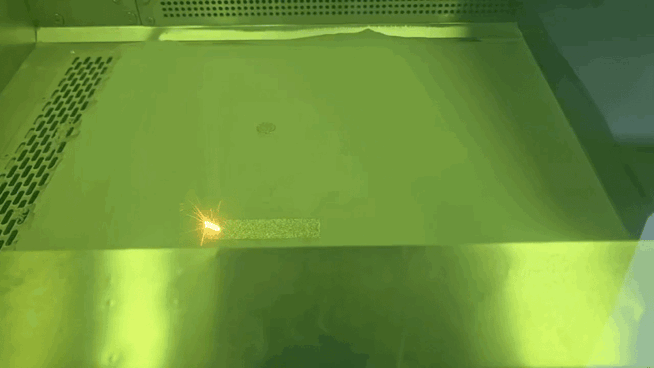

Large molding size, high efficiency
The size of the molding room can reach 265mmx265mmx400mm, with a volume greater than 25L;
Independently developed path planning software optimizes scanning paths and shortens processing time;
Optional dual laser printing, significantly improving efficiency by about 70% compared to single laser printing.
Innovative beam shaping technology
Free switching of multi spot mode
Gaussian light, circular light, and point ring s
pot infinite transformation
Precise control of power density
The energy ratio between the center and the ring is continuously adjustable from 0-100%
Ultra high speed mode switching
Spot shape switching time<0.4 seconds
Dynamic and efficient printing capability
Support real-time adjustment of energy strategy during printing process. In the circular spot mode, thick layer forming is more efficient and the interlayer bonding force is strong
Features
1. Closed Loop Motion System
IP53 efficiently waterproof and dustproof
2. Wind Farm Optimization Design
Wide coverage material, consistent forming quality throughout the entire format
3. Efficient Circulating Filtration System
Flexible configuration, optional for long-term or three-level filtering
4. Open-source Parameters
Laser power, scanning speed, etc. are open and adjustable
5. Large Capacity Powder Feeding Cylinder
No need to open the box and add powder, ensuring one-time forming
6. Modular and Compact Design
Easy to assemble and maintain
7. Real-time Monitoring
Real-time recording,output, self-diagnosis
8. HCI Friendly
Modular and compact design for easy use
Combustion Chamber ( MT-Hastelloy X )
Shoe Pattern（MT-PW01 ）
Orthopedic Implants ( MT-CoCrMo )
Technical Parameters
|
Materials |
Ttanium Aloy, Superalloy.Auminum Ally, Cobal- Chromium Aloy.Stainles Steel, Die Steel, Copper Aloy. Nickel Ttanium Aloy, High Entopy Ally, Refractory Metals. |
|
Build Size |
265mmx265mmx400mm (XxYxZ) |
|
Laser Type |
500Wx1/x2 |
|
Scanning System |
High-Precision Scanning Galvanometer |
|
Beam Focus System |
F-theta Lens |
|
Beam Quality |
M2≤1.1 |
|
Beam Diameter |
80±4µm |
|
Max Scanning Speed |
7m/s |
|
Layer Thickness |
20~100um |
|
Platform Preheat Temperature |
RT+20~200°C |
|
Powder spreading |
Single Variable Speed |
|
Gas |
Ar/N2 |
|
Oxygen Content |
≤100ppm |
|
Efficiency |
25cm3/h；50cm3/h |
|
Host Dimension |
3100mmx1000mmx2200mm (WxDxH) |
|
Installation Dimension |
4000mmx2500mmx2800mm (WxDxH) |
|
Power Supply |
AC380V |
|
Power Consumption |
≤8kW;11kW |
|
Weight |
Around 2600kg |
