MT400M
• Budget-Friendly Model
• Multi-Laser | Fast & Precise
• Perfect for 3C & Molding
Build Size：420mm×350mm×400mm（X×Y×Z）
Laser Type：500W×4/×6
Forming materials: Titanium Alloy, Superalloy, Aluminum Alloy, Cobalt-Chromium Alloy, Stainless Steel, Die Steel, Copper Alloy, etc.
Application Area
Aerospace
Mould
Automobile
Nuclear Power
Petrochemical Industry

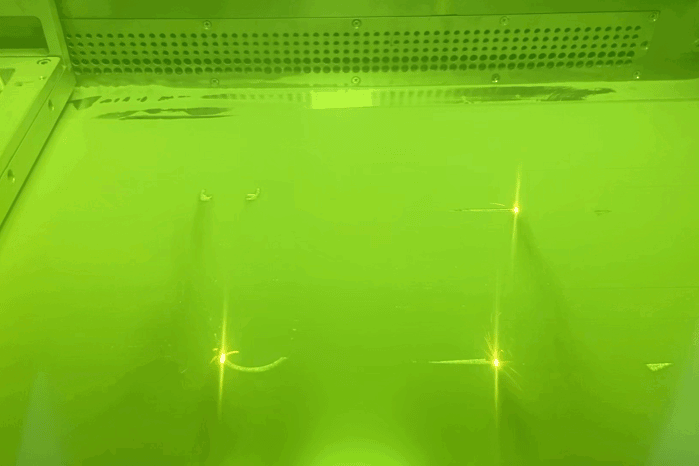

Large molding size, high efficiency
The size of the molding room can reach 420mmx350mmx400mm, with a volume greater than 58L;
Independently developed path planning software optimizes scanning paths and shortens processing time;
Supports four different printing configurations: dual laser, triple laser, quad laser, and quad laser, with a maximum molding speed of 200cm ³/h;
The independently developed process software can achieve optimized scanning strategies and shorten processing time.
High Performance
Equipped with a heating module, it can achieve temperature control and preheating function for forming substrates
The three-layer wind field design ensures effective removal of smoke and splashes, protecting the surface of formed parts from contamination
High precision laser and galvanometer ensure stable beam and power to ensure consistent output, printing accuracy, and quality of overlap area
Features
1. High Cost Performance
High quality laser High cost-effectiveness of the entire machine
2. Three Level Clean Air Field
Horizontal flow, steady flow, and blowing flow Good printing quality
3. Efficient Circulating Filtration System
Flexible configuration, optional for long-term or three-level filtering
4. Open-source Parameters
Laser power, scanning speed, etc. are open and adjustable
5. Multi Laser Premium Configuration
Greater increase in print efficiency to meet the demands of batch production
6. Innovative Powder Feeding Structure
Avoide malfunctions Convenient powder replacement and cleaning
7. Real-time Monitoring
Real-time recording,output, self-diagnosis
8. HCI Friendly
Modular and compact design for easy use
Shoe Mold (MT-316L)
Phone Hinge Cover (MT-Ti6Al4V)
Conformal Cooling Channel (MT-MS1)
MPC-Q30 Powder Cleaning Machine
MPS-JS30 Powder Collection Tank
MPS-BF30 Pump Powder Feeder
MSF-Z30 Powder Screening Machine
Technical Parameters
|
Materials |
Titanium Alloy, Superalloy, Aluminum Alloy, Cobalt-Chromium Alloy, Stainless Steel, Die Steel, Copper Alloy, etc. |
|
Build Size |
420mmx350mmx400mm (XxYxZ) |
|
Laser Type |
500Wx4/x6 |
|
Scanning System |
High-Precision Scanning Galvanometer |
|
Beam Focus System |
F-theta Lens |
|
Beam Quality |
M2≤1.1 |
|
Beam Diameter |
80±4μm |
|
Max Scanning Speed |
7m/s |
|
Layer Thickness |
20~100um |
|
Platform Preheat Temperature |
RT+20℃~200℃ |
|
Powder Spreading |
Single/Double Variable Speed |
|
Gas |
Ar/N2 |
|
Oxygen Content |
≤100ppm |
|
Efficiency |
75cm3/h;100cm3/h;150cm3/h;200cm3/h |
|
Host Dimension |
3100mmx1400mmx2200mm (LxWxH) |
|
Installation Dimension |
5000mmx3300mmx3000mm (LxWxH) |
|
Power Supply |
AC380V |
|
Power Consumption |
≤17kW;≤18kW |
|
Weight |
3100kg;3200kg |
